Yamaha

Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface

Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface

SKU: MG20XU

Dhs. 3,699.00
Dhs. 3,699.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 16 Mic / 20 Line Inputs
  • 12 Mono + 4 Stereo Inputs
  • D-PRE Mic Preamps
  • 4 Group Buses + 1 Stereo Bus
  • 4 Aux Including FX
  • High-Quality SPX Effects, 24 Programs
  • 1-Knob Compressors
  • 24-Bit / 192 kHz USB Audio Interface
  • Rackmount Kit Included
  • Includes Power Cord
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

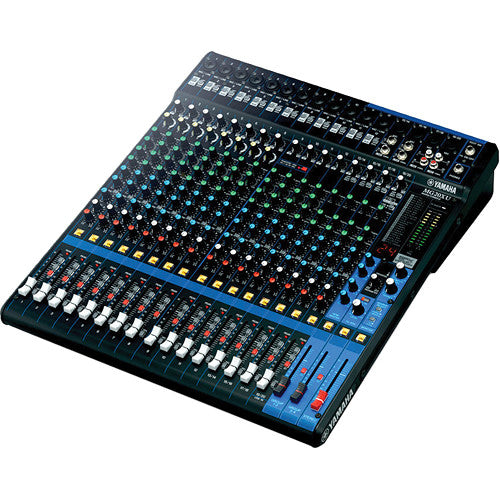

Yamaha MG20XU Overview

The Yamaha MG20XU is a compact mixer capable of 20 simultaneous inputs and is ideal for live performances, recordings, lectures, and more. The mixer features 12 mono mic/line combo input channels, and 4 stereo line input channels that can also be used as mono mic or line inputs. It also features USB connectivity and is capable of providing 2 channels in and 2 channels out to your computer at up to 24-bit / 192 kHz, ideal for recording live performances, demos, and more.

Channels 1-20 are each equipped with D-PRE mic preamps, 3-band EQ, pan control, and a high-pass filter, and channels 1-12 feature a sweepable midrange control. The D-PRE mic preamps feature an inverted Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-12 also feature 26 dB attenuation switches for use with loud sound sources such as guitar amplifiers and drums, and there is a one-knob compressor on channels 1-8 to smooth out the dynamics of vocals and instruments to help them sit better in your mix.

The MG20XU mixer has XLR and TRS stereo outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring as well as additional TRS 1/4" stereo monitor outs for sending to powered speakers, amplifiers, or devices such as digital recorders.

Each of the MG20XU's channels feature a dedicated FX bus send level and there are 24 effects presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. Providing reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion, and more, these effects can be used to help vocals and instruments sit better in your mix. The MG20XU ships with a rackmount kit and a power cord.

Yamaha MG20XU Specs

Mixer Configuration

• Number of Analog Input Channels: 20 (16 Mono / 4 Stereo)

• Number of Mic Preamps: 16

• Max I/O Capacity: 20x Input / 12x Output

• Rack Mountable: Yes

• Rackmount Size: 10 RU (with included hardware)

Input Channels

• 12x Combo XLR-1/4" Balanced/Unbalanced Mic/Line Input

• 4x XLR 3-Pin Balanced Mic Input

• 4x 1/4" TRS Balanced/Unbalanced Line Input (2 Stereo Pairs)

• 2x Stereo RCA TS Unbalanced Line Input (2 Stereo Pairs)

• 1x 1/4" TS Footswitch Input

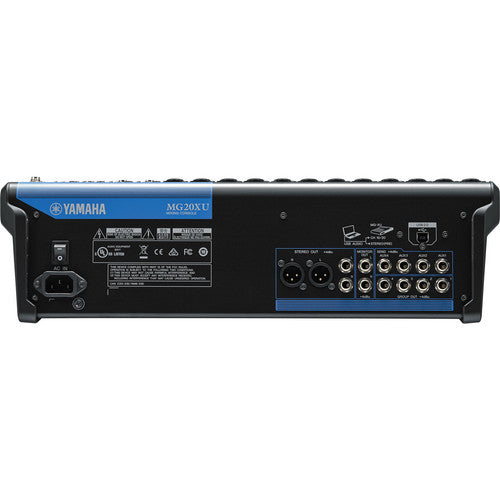

Output Channels

• 4x Stereo Master Output

• 2x Stereo Control Room/Monitor Output

• 4x Mono Aux Send Output

• 4x Mono Bus/Subgroup Output

• 1x 1/4" TRS Unbalanced Stereo Headphone Output

Routing & Mixing

• Mix Routing: Stereo Aux Bus/Subgroup

• Faders & Level Adjustment:

  • 16x Channel Fader

  • 2x Bus/Subgroup Fader

  • 1x Master Fader

• Solo/Mute Functions:

  • Mute per Input Channel, Bus, FX Bus, Master

Signal Processing

• Gain/Trim Range:

  • Line: -6 dB to +38 dB

  • Mic: +20 dB to +64 dB

• Input Pad: -26 dB

• Built-In Effects: Yes

• Compressor (Input Channels): Yes

Equalizer (EQ)

Mono Channels:

• 3-Band EQ:

  • High: ±15 dB at 10 kHz (Shelving)

  • Mid: ±15 dB at 250 Hz to 5 kHz (Semi-Parametric)

  • Low: ±15 dB at 100 Hz (Shelving)

Stereo Channels:

• 3-Band EQ:

  • High: ±15 dB at 10 kHz (Shelving)

  • Mid: ±15 dB at 2.5 kHz (Bell)

  • Low: ±15 dB at 100 Hz (Shelving)

• Graphic EQ: No

• Filters (Mono Channels): 16x High-Pass: 80 Hz

Monitoring & Indicators

• Main Meter: 2x 12-Segment LED

• Peak LED Indicators

🔈 Audio Quality

• Frequency Response: 20 Hz to 48 kHz (+0.5/-1.5 dB)

• Noise Floor: -102 dBu (Residual Output Noise, Stereo Out)

• Total Harmonic Distortion (THD):

  • 0.03% @ Min Gain (+14 dBu, 20 Hz – 20 kHz)

  • 0.005% @ Min Gain (+24 dBu, 1 kHz)

• Phantom Power: +48 V, Selectable On/Off (Applied to All Inputs)

Digital Audio / Connectivity

• USB I/O: 1x USB-B 2.0

  • 2-Track Recording

  • Audio Playback

  • Host Connection

• USB I/O Capacity: 2x Input / 2x Output

• Digital I/O: No

• MIDI I/O: No

Software Compatibility

• OS Compatibility: macOS / Windows

• Mobile App Compatible: No

⚡ Power

• AC Input Power: 100–240 VAC, 50 / 60 Hz

• Power Consumption: Not specified

Physical Specs

• Dimensions (W x H x D): 17.5 x 5.1 x 19.7 in / 44.5 x 13 x 50 cm

• Weight: 15.7 lb / 7.1 kg

• Package Weight: 20.6 lb

• Box Dimensions (L x W x H): 22 x 20 x 8.5 in

  • Yamaha MG20XU 20-Input Mixer with Built-In FX & 2-In/2-Out USB Interface
  • Power Cable
  • Rackmount Kit
  • Cubase AI Download Card
  •  Limited 1-Year Manufacturer Warranty
