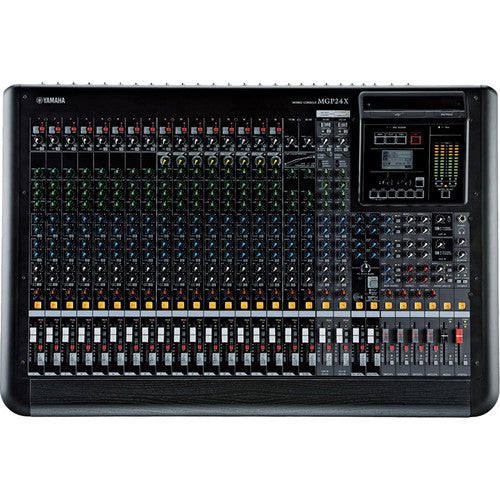

• Yamaha MGP24X 24-channel analog mixing console with DSP effects, USB audio interface, and D-PRE microphone preamps
1 2

Yamaha

Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects

Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects

SKU: MGP24X

Dhs. 6,299.00
Dhs. 6,299.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left
Badge

Key Features

  • 16 D-Pre Mic Preamps with Phantom Power
  • 24 Line Inputs, 6 AUX, & 2 FX Sends
  • iPhone/iPod Control & Connectivity
  • Record to USB Storage as WAV or MP3
  • X-pressive 3-Band EQ Per Channel
  • 1-Knob Compression
  • Auto-Ducker, Auto-Leveler
  • 3 Types of Reverb, 16 Digital Effects
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha MGP24X

The MGP24X 24-Channel Analog Mixing Console with DSP Effects from Yamaha is a 24-track analog mixer with digital control and features 16 D-Pre microphone preamps, 24 line inputs, 6 auxiliary inputs, and 2 effects sends. It is designed for use in live sound environments, including clubs and houses of worship.

Each channel has Yamaha's X-pressive 3-band equalizer and 1-Knob compressor, allowing channel-independent frequency and dynamic control. The MGP24X has an integrated DSP Hybrid Channel section that includes 3 types of reverb and 16 effects, as well as auto-ducker and auto-leveler functions that allow for hands-off monitoring of sources. The digital portion of the MGP24X also allows for iPhone and iPod touch control of a variety of parameters via the free MGP Editor app. You can also playback music from your iTunes catalog via the iOS input USB port, freeing up an analog input on the console. A second USB port allows you to record your live performance directly to external USB media, as either a stereo WAV or MP3 file.

Yamaha MGP24X Specs

Inputs


  • 16x Mic level XLRs

  • 16x Line level 1/4" (6.35 mm) TRS

  • 4x Stereo line level 1/4" (6.35 mm) TRS

  • 16x 1/4" (6.35 mm) TRS Inserts

  • 1x 1/4" (6.35 mm) stereo Return

Input Sensitivity

(Actual Source Impedance: 3 kΩ for Mono / 10 kΩ for Stereo & Inserts)

Mono Inputs (3 kΩ)


  • -80 dBu (0.078 mV) – for 50–600 Ω mics

  • -36 dBu (12.3 mV) – for 50–600 Ω mics

  • -54 dBu (1.55 mV) – for 600 Ω lines

  • -10 dBu (245 mV) – for 600 Ω lines

Stereo Inputs (10 kΩ)


  • -54 dBu (1.55 mV) – for 600 Ω lines

  • -10 dBu (245 mV) – for 600 Ω lines

Mono Channel Inserts (10 kΩ)


  • -20 dBu (77.5 mV) – for 600 Ω lines

Stereo Channel Insert Input L,R (10 kΩ)


  • -20 dBu (77.5 mV)

Talkback Input (10 kΩ)


  • -66 dBu (0.389 mV) – for 50–600 Ω mics

Mono Inputs (3 kΩ)


  • -60 dBu (0.775 mV) – for 50–600 Ω mics

  • 16 dBu (123 mV) – for 50–600 Ω mics

  • -34 dBu (15.5 mV) – for 600 Ω lines

  • +10 dBu (2.45 V) – for 600 Ω lines

Stereo Inputs (10 kΩ)


  • -34 dBu (15.5 mV) – for 600 Ω lines

  • 10 dBu (2.45 V) – for 600 Ω lines

Mono Channel Inserts (10 kΩ)


  • 0 dBu (0.775 V) – for 600 Ω lines

Stereo Channel Insert Input L,R (10 kΩ)


  • 0 dBu (0.775 V) – for 600 Ω lines

Talkback Input (10 kΩ)


  • -50 dBu (2.45 mV) – for 50–600 Ω mics

Mono Inputs (3 kΩ)


  • -40 dBu (7.75 mV) – for 50–600 Ω mics

  • 4 dBu (1.23 V) – for 50–600 Ω mics

  • -14 dBu (155 mV) – for 600 Ω lines

  • 30 dBu (24.5 V) – for 600 Ω lines

Stereo Inputs (10 kΩ)


  • -14 dBu (155 mV) – for 600 Ω lines

  • 30 dBu (24.5 V) – for 600 Ω lines

Mono Channel Inserts (10 kΩ)


  • 20 dBu (7.75 V) – for 600 Ω lines

Stereo Channel Insert Input L,R (10 kΩ)


  • 20 dBu (7.75 V)

Talkback Input (10 kΩ)


  • -30 dBu (24.5 mV) – for 50–600 Ω mics

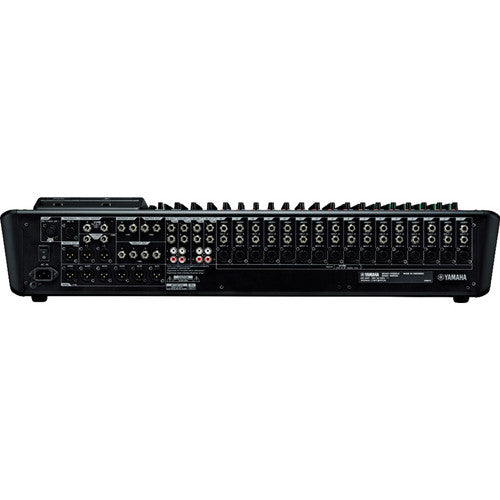

Outputs


  • 1x XLR Stereo out (L,R)

  • 6x XLR auxiliary sends

  • 16x 1/4" (6.35 mm) Channel insert outputs

  • 1x 1/4" (6.35 mm) Monitor out (L,R)

  • 4x 1/4" (6.35 mm) Group out

  • 1x 1/8" (3.5 mm) headphones out

  • 1x 1/4" (6.35 mm) Stereo insert (L,R)

  • 2x 1/4" (6.35 mm) Matrix outs

  • 1x XLR Mono out

Nominal Output Level


  • 4 dBu (1.23 V) @ 75 Ω – for 600 Ω lines

  • 4 dBu (1.23 V) @ 75 Ω – for 600 Ω lines

  • 4 dBu (1.23 V) @ 150 Ω – for 10 kΩ lines

  • 4 dBu (1.23 V) @ 75 Ω – for 600 Ω lines

  • 4 dBu (1.23 V) @ 150 Ω – for 10 kΩ lines

  • 0 dBu (0.775 V) @ 75 Ω – for 10 kΩ lines

  • 0 dBu (0.775 V) @ 75 Ω – for 10 kΩ lines

  • 4 dBu (1.23 V) @ 150 Ω – for 10 kΩ lines

  • 3 mW @ 150 Ω – for 40 Ω headphones

Maximum Output Level


  • 24 dBu (12.3 V) @ 75 Ω – for 600 Ω lines

  • 24 dBu (12.3 V) @ 75 Ω – for 600 Ω lines

  • 20 dBu (7.75 V) @ 150 Ω – for 10 kΩ lines

  • 24 dBu (12.3 V) @ 75 Ω – for 600 Ω lines

  • 20 dBu (7.75 V) @ 150 Ω – for 10 kΩ lines

  • 20 dBu (7.75 V) @ 75 Ω – for 10 kΩ lines

  • 20 dBu (7.75 V) @ 75 Ω – for 10 kΩ lines

  • 20 dBu (7.75 V) @ 150 Ω – for 10 kΩ lines

  • 75 mW @ 150 Ω – for 40 Ω headphones

General Specs


  • 0.02% (20 Hz–20 kHz @ 14 dBu)

  • 20 Hz–20 kHz, ±0.5/-1.0 dB (ref. 1 kHz)

  • -74 dB @ 1 kHz

Power


  • 100–240 V, 50/60 Hz (auto-switching)

  • 76 W max

Physical Specs


  • 32.2 x 6.7 x 22.2 in (819 x 169 x 565 mm)

  • 34.2 lb (15.5 kg)

📦 Packaging Info


  • 49.4 lb

  • 37 x 27.5 x 10 in
  • Yamaha MGP24X 24-Channel Analog Mixing Console with DSP Effects
  • Limited 1-Year Manufacturer Warranty
