Yamaha

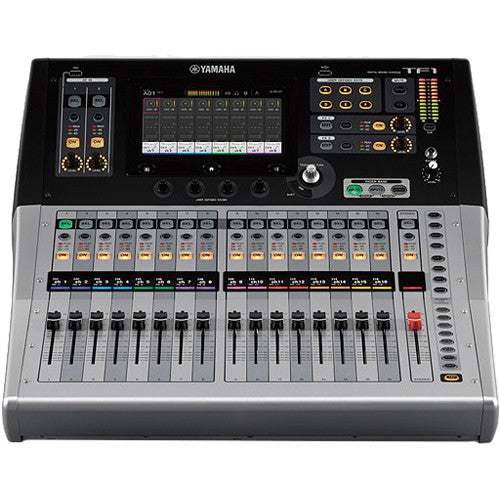

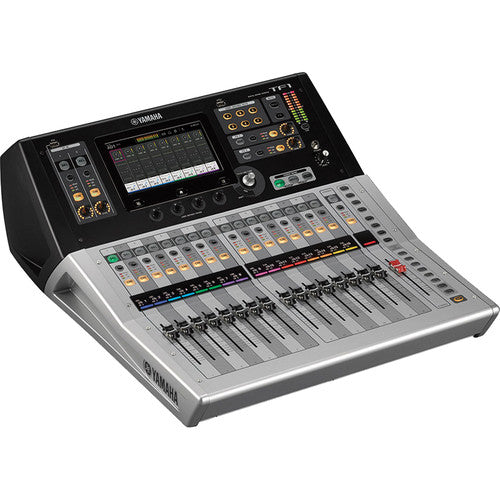

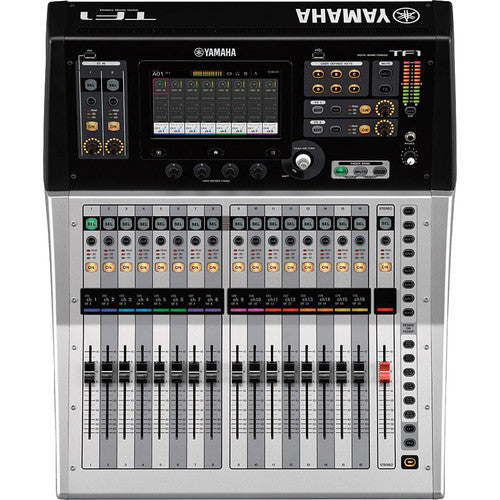

Yamaha TF1 Digital Mixing Console

Yamaha TF1 Digital Mixing Console

SKU:SKU: TF1

Regular price Dhs. 9,999.00
Regular price Sale price Dhs. 9,999.00
Sale Sold out
Inclusive of VAT
Shipping calculated at checkout.

Low stock: 1 left

Badge

Key Features

  • Touchscreen & 17 Motorized Faders
  • 16 Analog XLR/TRS Combo Mic/Line Inputs
  • 2 Analog RCA Pin Stereo Line Inputs
  • 16 Analog XLR Outputs
  • Per-Channel EQ /Comp & 8 FX Processors
  • Recallable D-PRE Microphone Preamps
  • Expandable Up to 40 Input Channels
  • 34x34 Recording to Computer via USB 2.0
  • Optional Tio1608-D I/O Rack
  • Includes Steinberg's Nuendo Live
View full details
  • Description
  • Technical Specification
  • In the Box
  • Delivery & Shipping Policy

Yamaha TF1

The Yamaha TF1 is a rack-mountable digital audio mixing console that features a touchscreen display, 17 motorized faders, and is expandable up to 40 input channels by adding the optional Tio1608-D I/O rack. Ideal for a multitude of live sound reinforcement scenarios, the TF1 can also be used for live recording, offering 34 x 34 channel digital recording and playback via USB 2.0 using a computer and your preferred DAW software, and 2 x 2 channel recording and playback using any USB storage device.

The TF1 console itself provides 16 analog XLR/TRS combo mic/line inputs with 48V phantom power, as well as 2 analog RCA stereo line inputs, and 16 analog XLR outputs. Each combo input channel features a recallable D-PRE microphone preamp, as well EQ and two dynamics processors. In addition, the console offers eight powerful FX processors with patches ranging from reverb and delay, to modulation effects such as flanger and chorus, to utility processing like 3-band multi-band compression. The TF1 ships with Steinberg's Nuendo Live for advanced multi-tracking and virtual sound check capabilities.

Yamaha TF1 Specs

• Max I/O Capacity: 48x Input / 22x Output

• Number of Analog Input Channels: 16 (16 Mono / 2 Stereo)

• Number of Mic Preamps: 24

• Number of Analog Output Channels: 16

• Faders: 17x 3.9" / 100 mm Motorized Faders

• Built-In Effects: 8x (Type Unspecified)

Analog Inputs

• 1x 1/4" TS Footswitch Input

• 2x Stereo RCA Unbalanced Input

• 16x Combo XLR-1/4" TRS Balanced Mic/Line Input

• 2x Stereo RCA Stereo Line Input

Analog Outputs

• 16x XLR Balanced Output

• 1x 1/4" TRS Unbalanced Headphone Output

🔌 Digital & USB I/O

• 1x RJ45 (Network)

• 1x USB-B (Host Connection)

• 2x USB-A (Control, External Memory)

Rack Mountable

• No

Mixer Section

• Mix Routing:

• 1x Main LRC

• 1x Subgroup

• 6x Stereo Aux Send

• 8x Mono Aux Send

• Groups: 8x DCA Group

• Presets: Yes

• Display: Touchscreen

Signal Processing

• Gain/Trim Range: -6 dB to +66 dB

• EQ: No

• Graphic EQ: Yes

• Built-In Effects: 8x (Type Unspecified)

• Audio Delay: Yes

Digital Audio

• Sample Rate: 48 kHz

• Bit Depth (Record): 24-Bit

Performance

• Frequency Response: 20 Hz to 20 kHz +0.5/-1.5 dB

• Max Input Level:

• Mic/Line Input: +30 dBu

• Stereo Input: +10 dBV

• Analog Dynamic Range: 107 dB at Min Gain

• Headphone Output Power:

• 3 mW

• 75 mW (Max)

• I/O Impedance:

• Combo XLR-1/4" Input: 7.5 kΩ

• Stereo RCA Input: 10 kΩ

• XLR Output: 75 Ω

• Headphone Output: 100 Ω

• Noise Floor: -85 dBu A-Weighted

• THD: < 0.05% at Min Gain (+4 dBu)

• Signal Generator: Yes

Connectivity

• MIDI I/O: No

• Expansion Ports: 1x I/O Card

Mobile App Compatibility

• Compatible with Android & iOS

• App Names: TF Editor, TF StageMix, MonitorMix

• Functions: Adjust Settings, Remote Control, Setup, View Live Feed

Recording

• Max Multitrack Recording: 34 Tracks

• File Format Support:

• Playback: MP3, WAV

• Record: WAV

💻 Compatibility

• OS Compatibility: Android / iOS

Power

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical Dimensions

• Dimensions: 20.1 x 8.9 x 23.6" / 510 x 225 x 599 mm

• Weight: 29.8 lb / 13.5 kg

Packaging Info

• Package Weight: 39.35 lb

• Box Dimensions (LxWxH): 28 x 24.5 x 12.75"

  • Yamaha TF1 Digital Mixing Console
  • Power Cord
  • Steinberg's Nuendo Live
  •  Limited 1-Year Manufacturer Warranty
